TPM series of industrial-grade modular UPS, is OST technology company introduced a non-isolated type of "energy saving, green, green" power products, is a reference to the new modular parallel technology and new concepts as power protection module to market of UPS, which includes not only the traditional UPS rectifier, filter, charging inverter device also has intelligent power protection systems, and uses the average current control rectifier technology, overall master-slave synchronization control technology, multi-level distributed control technologies and new concepts of third-order sine wave inverter technology to reduce operation and maintenance costs while providing higher efficiency and more flexible mobility and better reliability. Product protection class IP30 in accordance with standard design, the selection of the components used meet the high standards required by industrial-grade components and rigorous testing procedures applicable to government agencies, military, communications, electricity, transportation, broadcasting, finance, taxation, health care, education, research, business, petrochemical, mining and other industries critical data center room.
1. Introduction
System capacity of 120KVA, 200KVA, 240 KVA, 320 KVA, 480 KVA multiple series, the power module is 20KVA, users are free to choose according to load size.
System for the modular structure, the static switch module, control module and 1-24 power modules connected in parallel.
Monitoring module, static switch module and hot-swappable power modules are available online.
System demand is set to 1/1, Inlet and outlet 1/3, 3/1 or 3/3.
To upgrade the system redundancy, N + X redundancy, can be upgraded online capacity expansion based on user needs.
Using master-slave parallel, multi-level distributed control technology, non-bottleneck operation and reliable performance.
All power modules share the battery pack.
Has a complete battery management functions: battery self-discharge function, automatic float conversion function, temperature compensation, automatic current sharing.
Either a power module input, output and charging power balanced distribution function.
Overall efficiency greater than 95% (AC-AC), inverter efficiency greater than 98% (DC-AC), inverter current harmonics (THDI) less than 3% of the input power factor (PF) greater than 0.99.
AC input using running continuous current mode (CCM), to reduce network interference (RFI / EMI).
Compliance with industry specifications outline the structure, equipment, small size, light weight, can meet the load requirements of ordinary buildings.
Optional input and output isolation transformer K value.
Manual maintenance switch, C-class lightning protection module, LAN, RS232, RS485/RS422 communication interfaces, remote monitoring software are standard.
TPM system Outline
2.System composition
TPM Series modular UPS system consists of the system cabinet, static switch module, system monitoring module and 1-24 power modules connected in parallel.

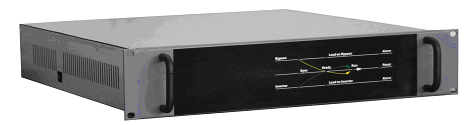

TPM static switch configuration diagram

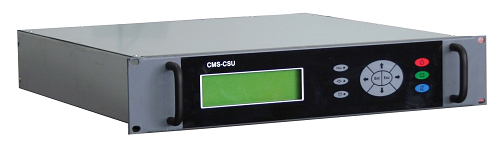

Control system of TPM profiles

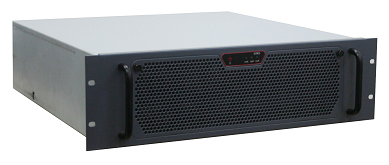

The TPM power module outline drawing
Second, the performance characteristics
TPM Series modular UPS system not only has the characteristics of parallel redundancy, you can completely replace the traditional 1 +1, 2 +1 and systems, and is a "green power" program, with a high input power factor, low harmonic distortion, high efficiency and high stability and reliability advantages, with powerful monitoring software and comprehensive communications interface for precision equipment and bodies, in particular telecommunications, power industry applications.
1. Redundancy
TPM system parallel redundant UPS power supply, three insingle-out, three-threein, single or single out single in more than three standard operation. System from the power distribution unit, system monitoring, static switch and 1 to multiple power modules, power modules can be hot-swappable expansion mode free replacement.
TPM system for all power modules in the array system load average burden, the parallel modules are built-in redundancy intelligent independent individual, without parallel system monitoring system for centralized control. After the failure of any module (including system monitoring), redundant design TPM system will be fully effective, comprehensive protection for normal operation of equipment to achieve the greatest degree of fault tolerance, while the user can select more than one redundant fault tolerance required .
2.Expansibility
TPM extremely flexible system architecture, power module design concept can easily be removed and installed without affecting the operation and output of the system when the system is running, make the investment plan to achieve "on-demand extensions", allowing users with business development to achieve "dynamic growth ", both to meet the post-equipment demand expansion, but also reduce the initial purchase cost.
3.Availability
TPM system in parallel with superior functionality, UPS is a leading representative of the high-end technology, the MTBF values ??(MTBF) is 1.5 times that of traditional UPS, the average no significant fault value (MTBCF) is three times that of traditional UPS systems, the average repair time value (MTTR) is only five minutes in the system to normal operation.
4.Flexibility
TPM system battery pack (± 384V) from the system all UPS modules share (including charging and discharging). Use it according to user needs a battery or multiple batteries in parallel to increase the system standby time. TPM system uses a flexible way to access the battery, the battery voltage and reduces the quantity and improving the life of the battery pack.
5.Security
TPM system uses a three-phase five-wire power module input. TPM system online operation, regardless of three single out, three-three, single-entry three or single into a single work, regardless of whether the output load balancing, enter zero line no mains current, no voltage, thus Safety critical equipment to meet the various requirements of the zero voltage of.
6.Environmental protection
PFC circuit TPM system uses advanced active average current control technology, can achieve input current total harmonic distortion (THDI) only 3%, while the unit input power factor PF = 0.99. Under linear load condition, greatly reducing the power grid pollution, reduce network load and power consumption, overall efficiency up to 95% energy savings.
7.Manageability
TPM system built-in sound power analysis and a variety of communication interfaces with intelligent monitoring software, two-way interactive communication through a variety of communication interfaces and administrators, allowing administrators to remotely monitor the system at any time, a number of anomalies pretreated Always make the system stable and reliable operation.
Each module is set inside a dedicated charging rectifiers, high reliability, no high frequency noise, to avoid the impact of high frequency waves on battery life; avoid overheating while charging the battery, extending battery life.
Intelligent battery management:
Provide battery self-discharge function. For long-term operation can not discharge the battery system, the discharge operation can be performed manually. Discharge process has multiple levels of protection, the activation of the battery at the same time, protect the load safely.
Are using advanced, float conversion technology, according to the charging current of the battery cell capacity to detect and judge, automatic float conversion, saving charging time, activation of the battery, thereby extending battery life.
Can be automatically adjusted according to changes in ambient temperature float voltage, the effective capacity to ensure maximum battery to extend battery life.
Can be connected in parallel using automatic current charger, sharing imbalance <5%, to meet the user's desire to restore the energy reserves of the battery as soon as possible.
Maintenance
TPM system uses advanced technology hot-swappable UPS module, a single module can be put into any online or exit parallel unit, no power to operate. Achieve a parallel system of online maintenance, while the operation without specialized equipment and techniques can be carried out.
Fourth, the technical parameters
TPM System Specifications
Specification |
TPM-120 |
TPM-200 |
TPM-240 |
TPM-480 |
||||
Maximum capacity |
120KVA |
200KVA |
240KVA |
480KVA |
||||
Power Modules |
The power module model with |
PM20 |
||||||
Mains input |
Input |
Three-phase four-wire + ground / single phase two-wire + ground |
||||||
Input Voltage |
380V/220 V ± 20%, 400V/230 V ± 20%, 415V/240 V ± 20% |
|||||||
Input Frequency |
5 0 Hz ± 10%, 60 Hz ± 10% |
|||||||
Slow start (Sec.) |
60secs |
|||||||
Enter the total harmonic distortion THDI (%) |
<3% |
|||||||
Input Power Factor |
≥0.9 9 |
|||||||
Bypass Input |
Input Voltage |
380V/220 V ± 20%, 400V/230 V ± 20%, 415V/240 V ± 20% |
||||||
Input Frequency |
5 0 Hz ± 4%, 60 Hz ± 4% |
|||||||
Input frequency tracking range |
5 0 Hz ± 4%, 60 Hz ± 4% |
|||||||
DC input |
Rated input voltage |
±384VDC |
||||||
InputVoltage Range |
±345V ~ ± 445V DC |
|||||||
Charging characteristics |
Charge current limit |
Have |
||||||
Charging time |
10 hours (2 hours back-up battery capacity) |
|||||||
Charging voltage stability |
±1% |
|||||||
AC output |
UPS power factor |
0.8 |
||||||
The output voltage |
380V/220V AC, 400V/230V AC, 415V/240V AC |
|||||||
Output frequency |
50H z ± 4%; overrun mains or battery power output is 50Hz ± 0.2% 60H z ± 4%; mains or battery-powered output overrun was 6 0Hz ± 0.2% |
|||||||
Output voltage stability |
380V/220V ± 1% (static); 380V/220V ± 2% (0 to 100% load change) 400V/230V ± 1% (static); 400V/230V ± 2% (0 to 100% load change) 415V/240V ± 1% (static); 415V/240V ± 2% (0 to 100% load change) |
|||||||
Output Voltage Recovery Time |
<20ms (0 to 100% load change) |
|||||||
City electric battery switching time |
0ms |
|||||||
Bypass inverter switching time |
<1ms |
|||||||
Crest Factor |
3 : 1 |
|||||||
Total harmonic distortion THDI (%) |
≤3% |
|||||||
Overall efficiency |
≥95% (AC power supply) ≥98% (battery-powered) |
|||||||
Both flow accuracy |
≤5% |
|||||||
Work Environment |
Storage temperature |
-25 ℃~ 60 ℃ |
||||||
Operating environment temperature |
-5 ℃~ 40 ℃ |
|||||||
Allowable altitude |
≤1 5 00 |
|||||||
Relative Humidity |
≤9 5% non-condensing |
|||||||
Protection class |
IP30 |
|||||||
Cooling |
Speed ??control air-cooled |
|||||||
Compliance with safety regulations |
EN6 2040-1-1: 2003 IEC60950-1: 2001 |
|||||||
Electromagnetic compatibility characteristics |
EN62040-2: 2006 |
|||||||
Noise |
≤55dB |
|||||||
Other |
Cabinet Size (H × W × D) mm |
1400*600*800 |
2000×600×800 |
2000×1400×800 |
2000×2000×800 |
|||
Structure |
19-inch standard rack |
|||||||
Monitoring and management system |
UPSupervisor |
|||||||
RS232, RS485/422 and configure the 8 dry contact |
Standard |
|||||||
TCP / IP expansion card |
Standard |
|||||||
Show |
LCD / LED |
The PM power module technology parameters
Module Type |
PM10/15/20 |
Module capacity |
10/15/20KVA |
The number of modules (can be extended up to) |
480KVA |
DC input |
384V DC |
Input / Output |
Three-three, three single out single into three, single into a single |
Module size (H × W × D) mm |
133×482×465 |
Weight (kg) |
16/18/20 kg |
Charging Module Description |
Each module may provide charging power 5KW |
Input Power Factor |
≥0.99 |
Overload |
Meet the requirements of system overload |
Maximum power dissipation |
600W |
Enter the total harmonic distortion THDI (%) |
≤3% |
